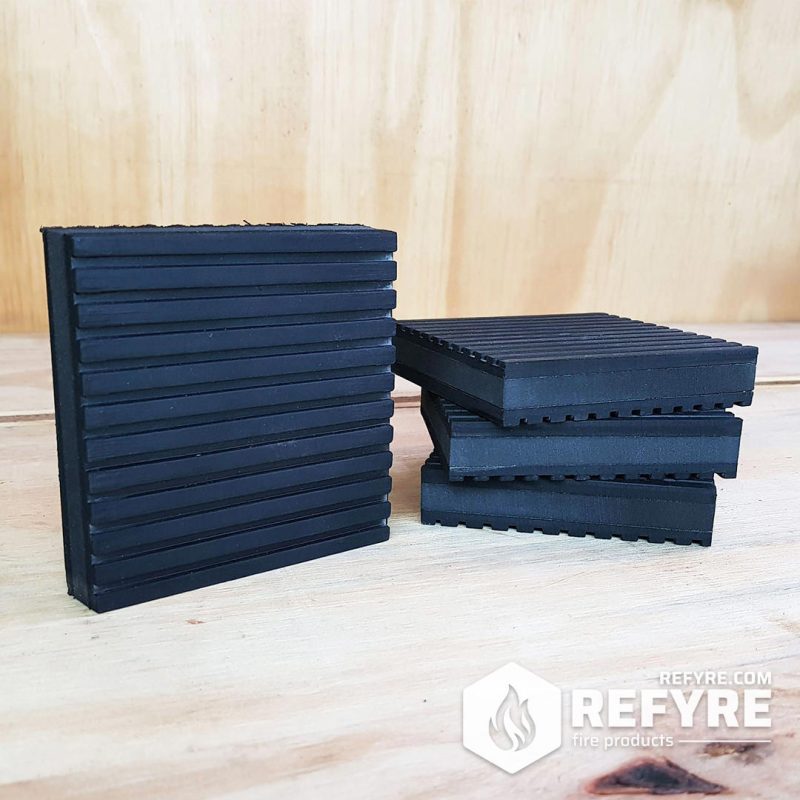

Anti-Vibration Pads (100mm x 100mm x 20mm) – Set of 4

Product Description

The CWT Anti-Vibration Pads are expertly designed to provide superior vibration isolation for a wide range of machinery and equipment. 100% locally manufactured, these pads are resistant to weather, rot, and distortion, making them a durable and reliable solution for long-term use in both indoor and outdoor environments.

 Product Specifications:

• Dimensions: 100mm x 100mm x 20mm
• Load Capacity: 5 kg/cm² (500 kg per pad)
• Maximum Deflection: 15% (3mm)
• Material Resistance: Oil-resistant, Resistant to diluted alkalis and acids, Weather-resistant, Rot-resistant, Distortion-resistant
• Locally Manufactured: 100% made locally
• Recommended Usage:
  • For machinery ≤ 2000 kg: 4 pads (one per corner)
  • For machinery 2000 kg to 4000 kg: 8 pads (2 per corner, laid side by side)
• Applications: Industrial machinery, HVAC systems, compressors, anvils (for noise and vibration dampening), and heavy-duty equipment
• Environment: Suitable for both indoor and outdoor use

 Key Features:

• Three-Layer Construction:
  • The middle layer is made from RG grade cross-linked, closed cell expanded ethylene vinyl acetate foam, known for its excellent vibration absorption and resistance to oil, diluted alkalis, and acids.
  • The top and bottom layers are composed of specially moulded SBR rubber, which is ribbed to prevent machinery movement and ensure stability.
• Durable and Weather-Resistant:
  • These pads are designed to withstand harsh conditions, offering resistance to weather, rot, and distortion, ensuring long-lasting performance even in demanding environments.
• Load Capacity:
  • Each pad can support up to 500 kg with a maximum load capacity of 5 kg/cm², and allows for a deflection of 15% (3mm) under load, ensuring efficient vibration isolation without compromising stability.
• Locally Manufactured:
  • Proudly 100% locally manufactured, ensuring top-quality production standards and supporting local industry.

Application & Usage:

The CWT Anti-Vibration Pads are recommended for use with machinery that transmits vibration to floor surfaces. For optimal stability, four pads are typically used—one under each corner or foot. For heavier machinery, additional pads may be required based on the weight and structure of the equipment.

These anti-vibration pads are also perfect for use between an anvil and its stand, helping to dampen both sound and vibration while hammering. Whether for industrial applications or workshop use, they provide reliable noise reduction and protect surfaces from excessive wear.

Weight Recommendations:

• For Units ≤ 2000 kg: A minimum of 4 pads is recommended—one at each corner.
• For Units Between 2000 kg and 4000 kg: At least 8 pads (2 per corner) laid side by side will provide optimal support and vibration control.

Ideal For:

• Industrial machinery
• HVAC systems
• Compressors
• Anvil stands (to reduce noise and vibration during hammering)
• Heavy-duty equipment in oil-resistant and chemical environments

Practical Illustration

A unit of 2000 kgs or less will generally require a minimum of 4 pads, one per corner or foot. However, the footprint of the machine may dictate the use of additional pads. For example a machine with a long flimsy channel base may require two or more additional pads.

For items more than 2000kgs but less than 4000kgs a minimum of 8 pads will be required, 2 pads per corner or foot, laid side by side (not stacked on top of each other)

These durable, weather-resistant anti-vibration pads are the perfect solution for anyone looking to reduce noise, minimize vibration, and protect equipment in even the toughest conditions.
